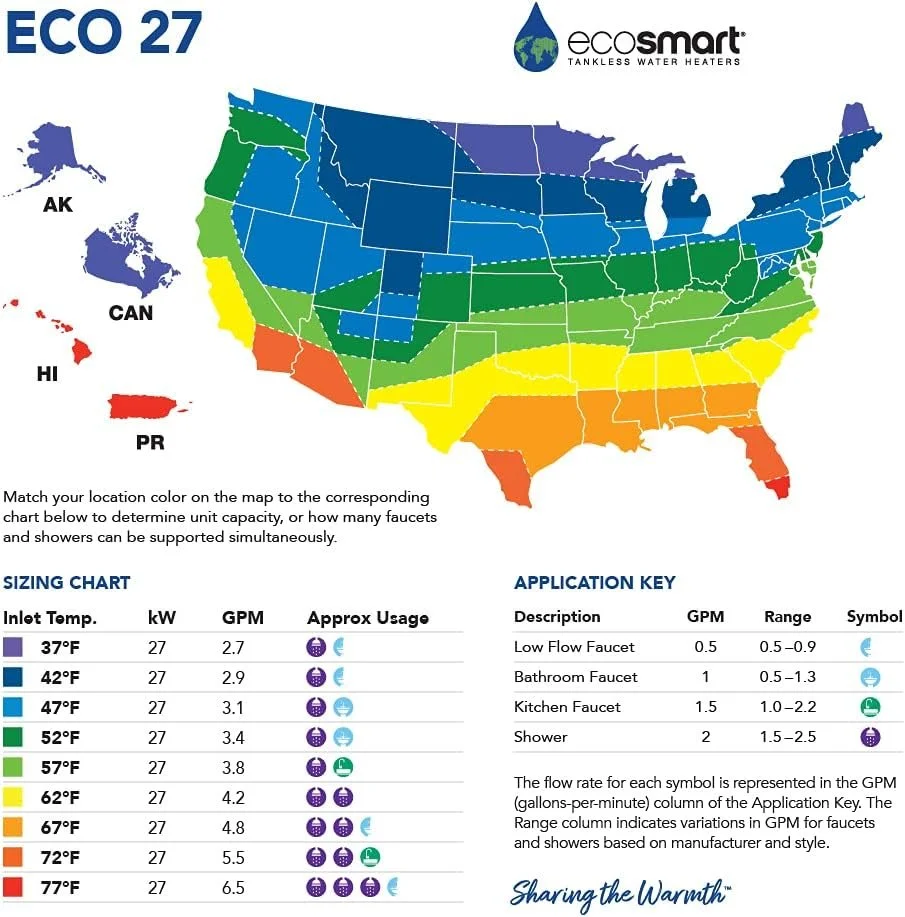

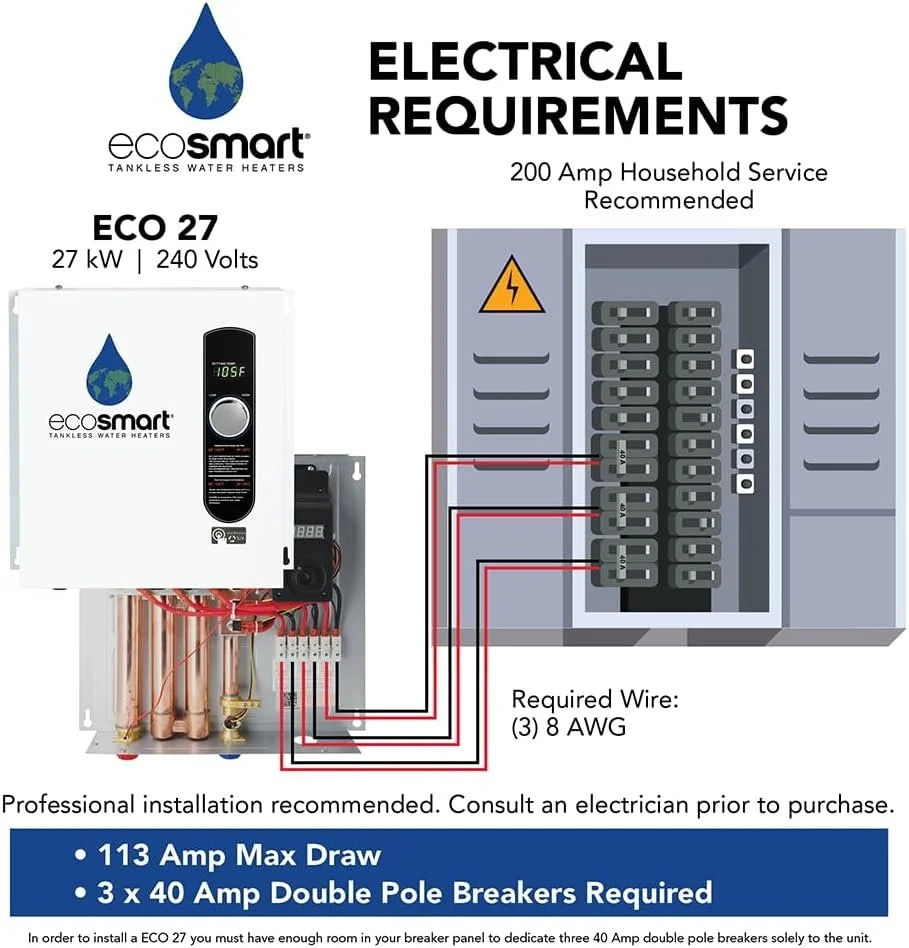

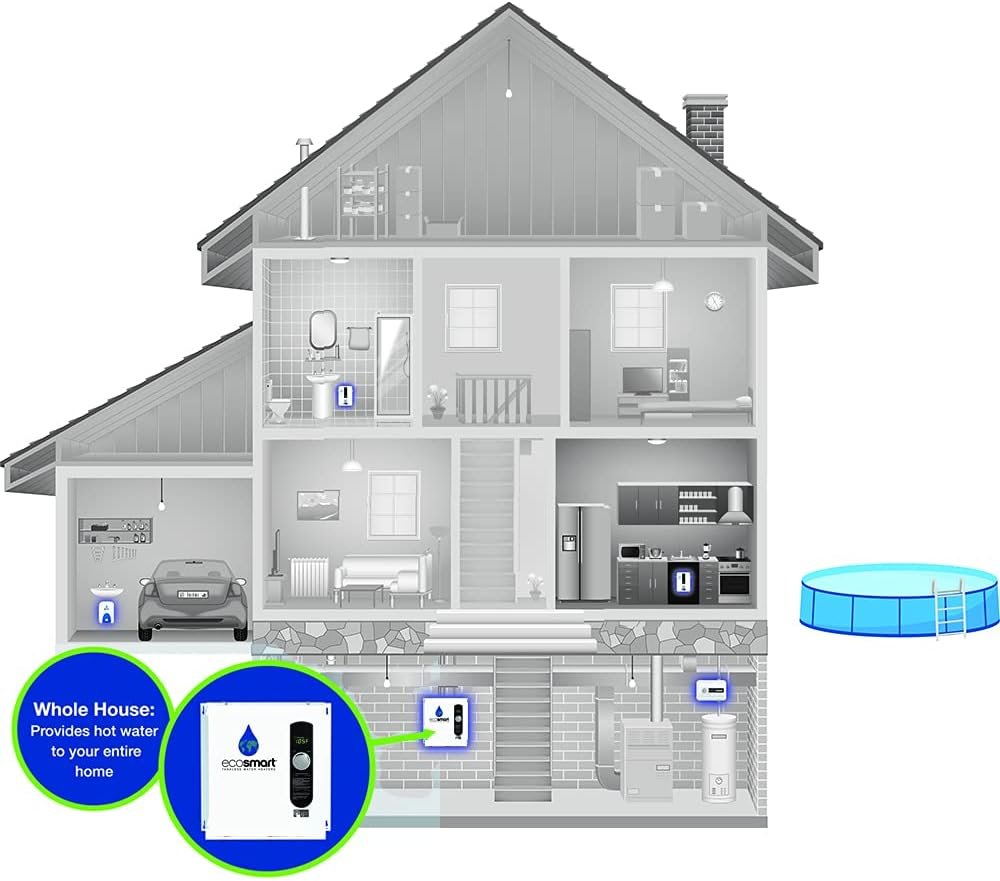

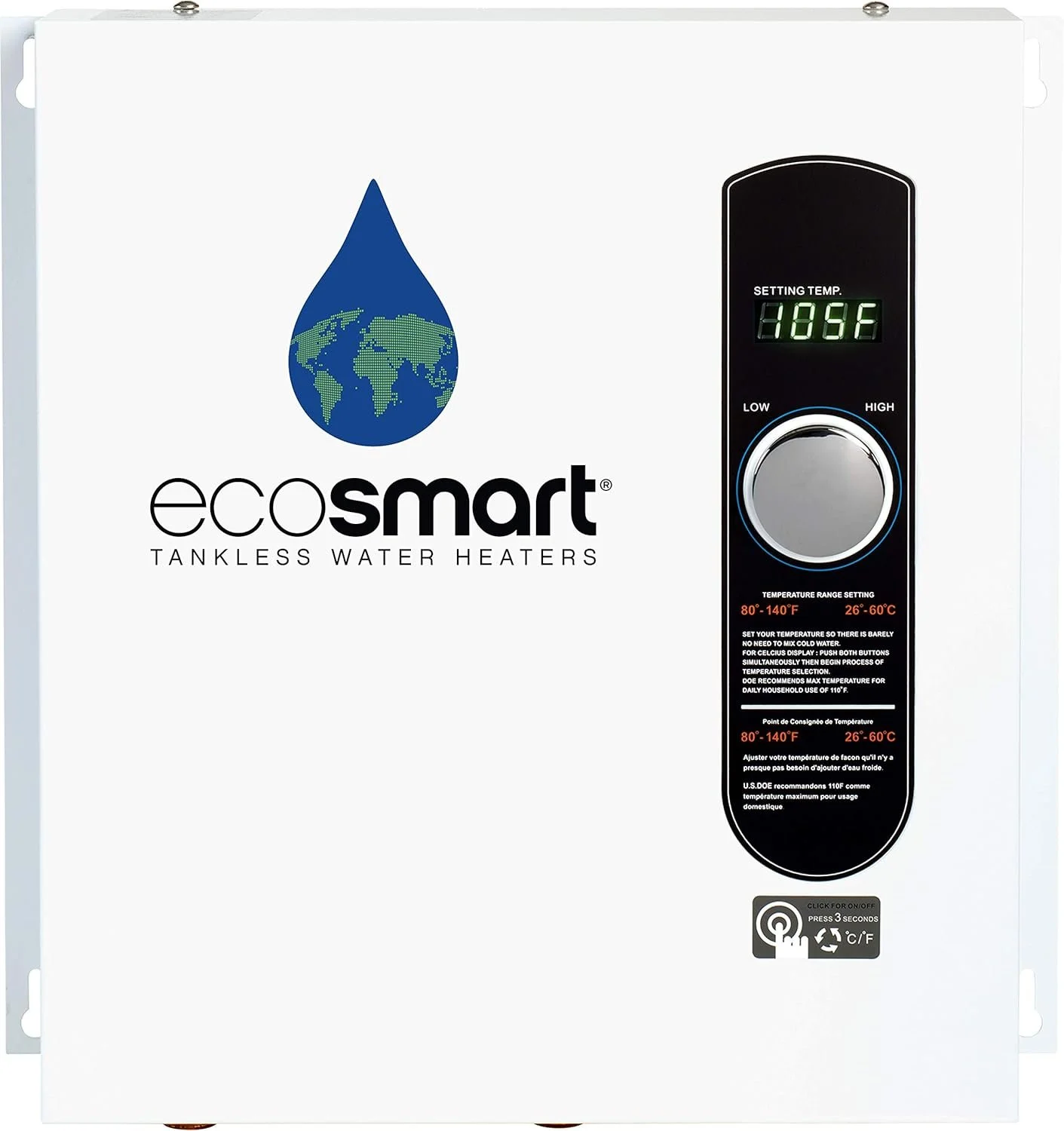

Configured for cold climates and high flow rates. Well suited where incoming water temperature can drop below 45 F. For use in more demanding water usage applications. Self modulating flow sensor technology regulates the amount of energy required to heat the water needed. Digital temperature display showing the outlet water temperature setting. Uses (3) 9 KW standard Emerson electric heating elements with brass tops to prevent electrolysis. Copper heat exchanger. Automatic resettable thermostat. (3) 40 DP breakers required. 112A draw. Required wire: 3 sets 8 AWG. Pipe fitting: 3/4'' NPT. Energy efficiency: 99.8%. UL and CSA certified.Weight: 11 lb. It can provide between 2.7 and 6.5 gallons-per-minute depending on the inlet water temperature.
PERFORMANCE FEATURES
Saves space – up to 93% smaller than a standard electric water heater
Saves Energy – zero standby heat loss when installed near point-of-use
More Hot Water – up to 4 times the hot water delivery of a standard electric tank (per hour)
High Efficiency – UEF up to .94 and advanced self-modulating technology only consumes the power needed to satisfy hot water demand

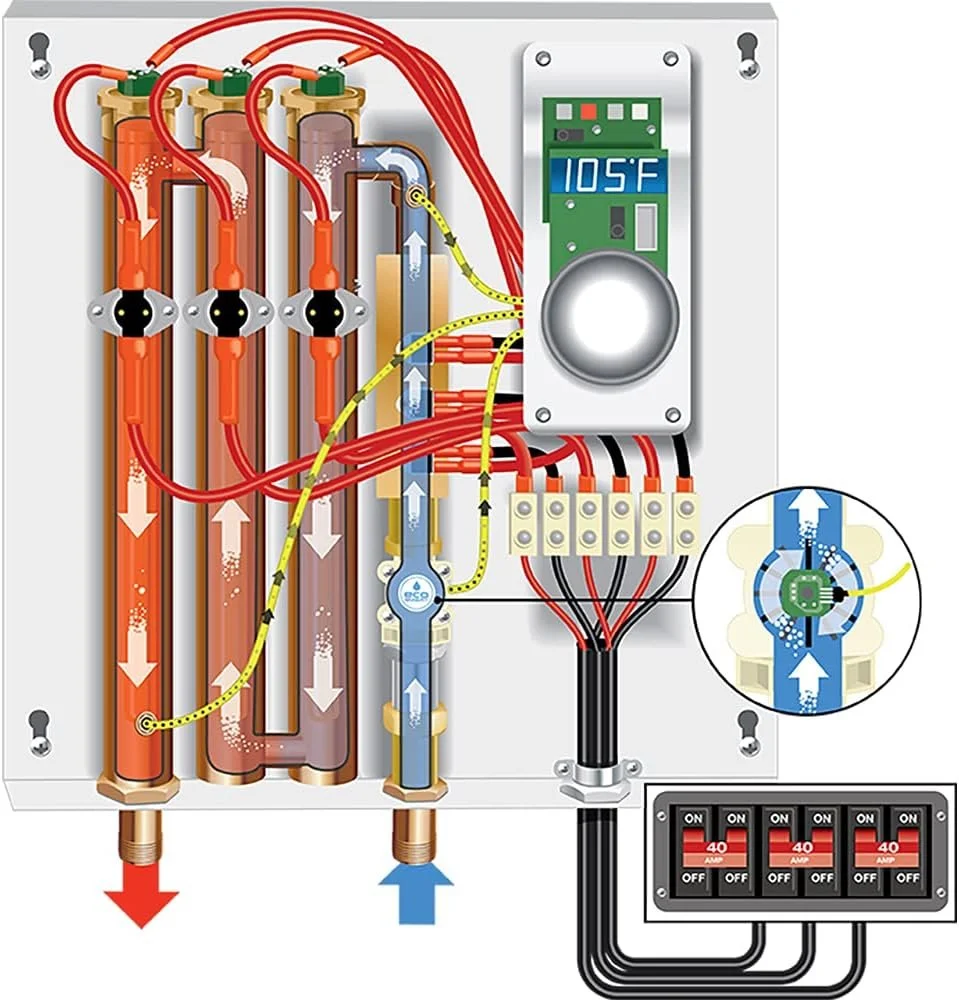

Copper immersion heating elements fit into a multi-chamber design to improve the thermal performance providing better temperature control and faster recovery of hot water
Copper heat exchanger transfers heat fast and resists corrosion
Durable powder-coated shell with a galvanized steel backplate
Brass NPT fittings located on the bottom for the inlet and outlet water connections provide strength and durability
Designed to be mounted in an upright position with the inlet and outlet water connections at the bottom of the unit for ease of installation
Venting is not required to operate, simplifying the installation process compared to a gas tankless water heater

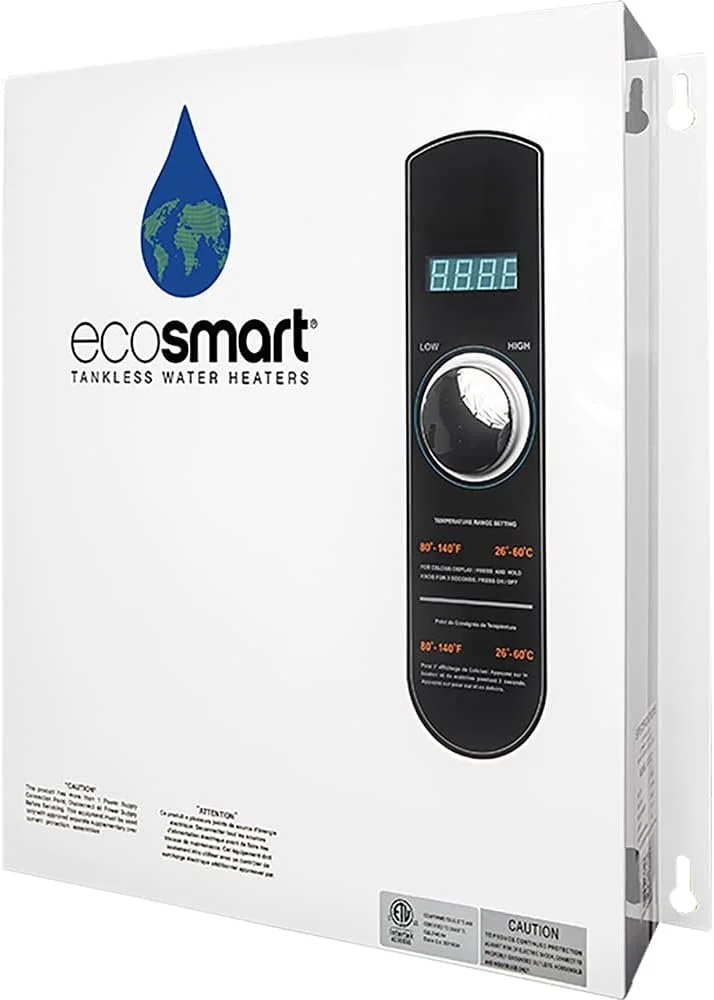

Digital thermostatic temperature controls in 1-degree increments ranging from 80°F - 140°F(26°C - 60°C)
Link to MFG Installation Details: https://www.ecosmartus.com/product/ecosmart-ECO-27-27-kW-Electric-Tankless-Water-Heater
